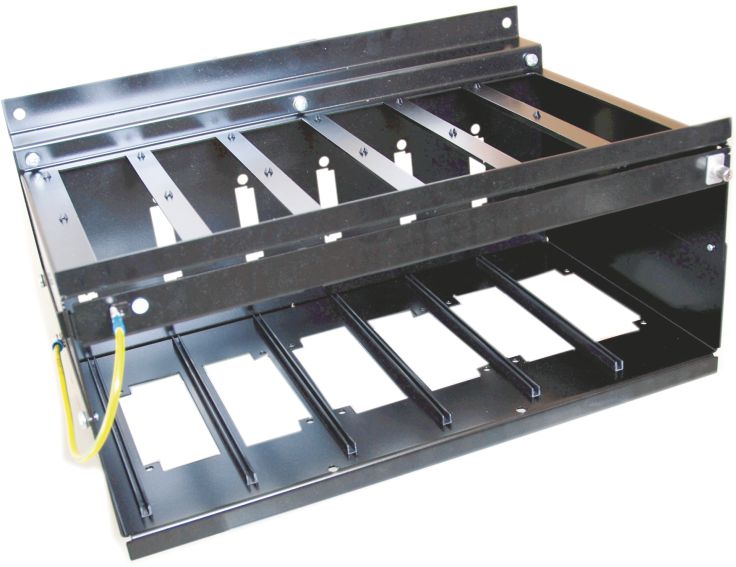

Rack Mount Frames for ZED R-EVG


  • up to 6 ZED single or dual lamp rack ballasts type R400PHplus-B, R2400PHplus-B or R600PHplus-B
  • push-in card system using MOLEX JUNIOR FIT connectors (plugs and contacts on request)
  • lock bar to prevent ballasts becoming loose or sliding out
  • space saving ballast mounting
  • quick and easy ballast installation
  • open frame design for easy mounting and cooling prepared for direct fan mounting

Technical Specification

IP code: IP00 (to be mounted in a closed cabinet)
mounting notes: air ventilation has to be ensured, thermal flow must not be broken
dimensions (LxWxD): 407 x 236 x 267 mm (16.02 x 9.29 x 10.53 inch)

ZED rack ballasts

  • R2x300PHplus-B
  • R400PHplus-B
  • R600PHplus-B
